V6Air

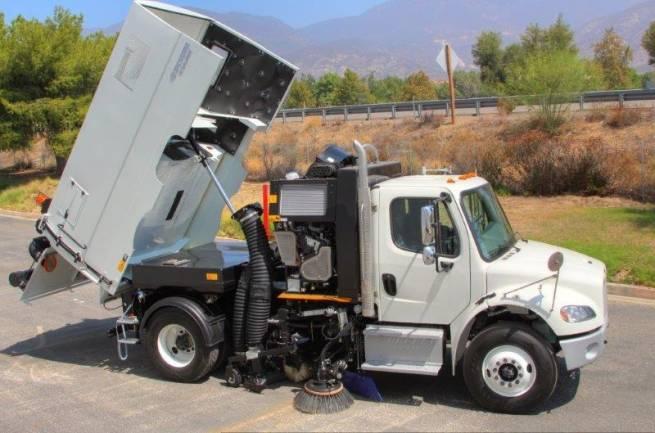

Global V6Air Street SweeperCHASSIS: 2018 Freightliner M2 106 Conventional, 33,000 GVWR, Rear Air Ride Suspension, DUAL STEER, Cummins 6,7-200 200 HP@2300 RPM 520 LB/FT @1600 RPM with 2500 Allison Trans, 2 speed Axle, Dual Air Ride Seat, with Radio, Meets 2018 Emission Standards.SWEEPER: DUAL Gutter Broom with Pneumatic Flaps AIR Sweeper. Aux. Engine: John Deere, Tier 4Final 4-Cylinder 74HPSTANDARD SPECIFICATIONS AND FEATURES

– 10″ (250 mm) Inside Dia. Vacuum Hose w/Straight Inlet Design	– Ergo Switch to Start/Stop All Sweeping Functions
– Hydraulic tilting system over aux. engine -hand pump for emergency.	– 29 Gallon Hydraulic Oil Tank
– 8.5 Cubic Yard (6,4m³) Hopper Volumetric Capacity	– 20 Micron Return Hydraulic Filters
– Bottom Floor Stainless Steel, side walls & engine cawl – mild steel	– Manual safe body props
– 60 degree Dump Angle of Debris Body	– Cyclon prefilter for auxiliary engine
– GRP Water Wanks, 502 Gallons Capacity (1.900 liters)	– 25′ Hydrant Hose with Coupling & Wrench
– Remote Ground Level Drains: Engine, Hydraulic, Gearbox Oils & Coolant	– Centralized Weatherproof Systems Locker
– One (1) Gutter Broom Water Spray Jets Per Side	– Two (2) Rear Mounted LED Strobes w/Limb Guards
– Bumper Mounted Wide sweep Spray Bar with 3 Spray Jets (per side)	– Body Paint Two Part Epoxy Factory White
– Wide sweep brush water spray bar with four (4) spray jets	– Engine Pack & Sweep Gear Powder Coated black
– Four (4) Vacuum Nozzle Water Spray Jets (per side)	– Patented VAST Air recirculation system for low dust
– One (1) recirculated air nozzle water spray jet (per side)	– Environmental working temperature higher than 23°F
– One (1) suction duct top water spray jet (per side)	– In-Cab Gutter Broom Down Pressure Control
– Exact regulation of the water flow to every nozzle group	– In-Cab Gutter Broom Tilt Control – Dual
– Pendant wide sweep broom down pressure control	– Tubes and Heavy Duty Wearplates – Rubberized (Dual)
– Outside cab handheld pendant dump controls	– Trailing Arm Channel Brushes
– Electrical Wiring Color and Number Coded	– Suction nozzle assistance ” floating nozzle”
– Dust Proof Electrical Wiring – IP65 Standards	– Pneumatic Rear Catch 8″ Catch Basin Hose
– Water Proof Electrical Wiring – IP67 Standards	– Suction Fan Cleaning Nozzle
– In-Cab Gutter Broom Down Pressure Control	– PM10 Water System (3 additional nozzles on sweep gear)
– L.E.D Indicators on All Solenoid Plugs	– Hopper and Door Raise Alarm
– Hydraulic suction fan drive, adjustable speed of fan	– Aerodynamic Bulky debris flap controlled from the cab
– Coolant/Oil Pressure Shutdown System	– Remote Grease Zerk for Wide Sweep Pivot
– In-Cab Gutter Broom and wide sweep broom Speed Control	– 29.5″ Diameter Trailing Arm Design Gutter Brooms
– Heavy duty fan 25% Increased Suction with Fan Housing	– 16″ x 59″ Wide sweep Broom
– Simultaneus Sweeping for Max Sweeping Path	– Dual LED Gutterbroom and Nozzle Worklights
– 4 GPM @1450PSI Pressure Washer with Hand Lance and Reel (45′)	– “Unhanded” Suction Nozzle & Gutter Broom Assembly
– Stainless Steel Tackle Line to Shake Hopper Screens	– Bulky debris flap controled from the CP in the cab
– “SILENT” package with fire resistant sound insulation material in	– 1 each Sweeper Ops Manual & Parts & Service CD – English
the fan compartment according to EN/DIN 75200

Call for Pricing
