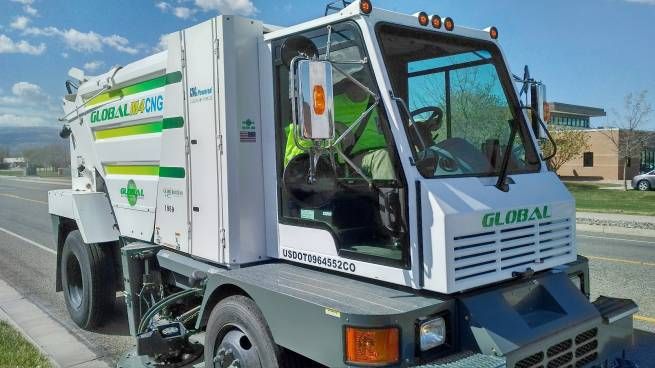

M4/M4HSD CNG (Compressed Natural Gas)

GLOBAL M4CNG/M4HSDCNG STANDARD SPECIFICATIONS AND FEATURES

GLOBAL M4 – M4HSD Compressed Natural Gas Broom Sweeper includes:

ENGINE: Cummins Westport B6.7N that sets the standard for natural gas engine performance and reliability while offering Near-Zero Emissions.

NOx levels 90% below current EPA standards
Particulate Matter levels 90% below current EPA standard
CO2 equivalents 16% below current EPA standard
Can achieve sub-zero emissions when using renewable natural gas (RNG)

SWEEPER: 9’6″ Rear High Dump – 11’6″ High Side Dump, HYDRAULIC DRIVE, Dual Gutter Broom, Gray/White Powder Coat, A/C, One Switch Operation, In-Cab Leaf Gate, Rear View Camera System, NEAR-ZERO EMISSIONS

– High Visibility Cab (Glass Entry Door Included)	– 5.2 – 5.6 cu yd Hopper (Volumetric)
– 62 dBA In-Cab Noise Level	– Hopper Dump Alarm
– Dust & Weather Sealed Cab	– 47″ (1194 mm) dia. Gutter Brooms
– Multi-Adjustable Suspension Seat	– In-Cab Gutter Broom Pressure Adjustment
– Tilt & Telescoping Steering Wheel	– Tuf-Grip Disposable Gutter Broom Segments
– Tinted Safety Windows & Windshield	– 32″ x 56.5″ (813 mm x 1435 mm) PM10 Pickup Broom
– Windshield Wiper/Washer	– 58″ (1473 mm) Wide Squeegee Type Elevator
– Ergonomic Go Pedal	– Two 18 gal (68 L) Hydraulic Oil Tanks
– Coolant Temp, Oil Pressure & Voltmeter Gauges	– Hydraulic Manifolds in LH Fender
– Coolant, Eng Oil Pressure & Low Hyd Oil Warning Lts.	– 18.5′ (5.6 m) Turning Radius
– Speedometer, Tachometer & Hourmeter	– Front & Rear Suspension
– Fuel Level Gauge	– All Sheet Metal Surfaces Primer Powder Coated
– 130 amp Heavy-Duty Alternator	– All Sheet Metal Surfaces Powder Coated
– 250-280 gal (945 L – 1060 L) Polyethylene & SS Water Tank	– Standard Frame Paint Color Gray
– Gutter Broom Water Spray Jets	– Standard Hopper/Cab/Fenders Paint Color White
– Pickup Broom Water Spray Jets	– Fender Mounted Tool Box
– Low Water Level Light in Cab	– Front & Rear Tie Downs with Tow Hooks
– 15′ (4.6 m) Hydrant Hose with Coupling & Wrench	– Left & Right Dual West Coast Mirrors
– Front Spray Bar	– Buddy Seat
– Engine Block Heater	– ERGO SWITCH STANDARD
– Auto Safety Hopper Props	– REAR VIEW CAMERA STANDARD
– Electrical Systems Locker	– 11-FLIGHT Elevator System
– Four Wheel Disk Brakes	– Load Leveling Device with Hopper Access Door
– ABS Brake System	– Hopper Full Indicator
– Cab Controlled Leaf Gate System	– Heavy Sweeping Package Hydraulic System
– Sealed LED Beam Headlights	– QuickChange Main Broom System
– LED Stop/Tail Lights, Clearance Lights	– 1 Sweeper Parts Manuals in English
– LED Gutter Broom Spotlights	– 1 Sweeper Operator Manual in English
	– Two(2) Year Elevator Sprocket Warranty
	– 1000 Hour Dirt Shoe Wear Warranty

Call for Pricing
